Solar Innova uses the latest materials to manufacture photovoltaic glass solar roof tiles.
Our solar roof tiles are ideal for any application that uses the photoelectric effect as a clean energy source because of its minimal chemical pollution and no noise pollution.
The front of the solar roof tile contains a tempered solar glass curved with high transmissivity, low reflectivity and low iron content.
This PV solar roof tile use high-efficiency monocrystalline silicon cells to transform the energy of sunlight into electric energy. Each cell is electrically rated to optimize the behavior of the module.
The cell circuit is laminated using PVB (Polyvinyl Butyral) as an encapsulant which provides complete protection and seals against environmental agents and electrical insulation.
The rear of the solar roof tile contains a tempered solar glass.
The junction boxes with IP65, are made from high temperature resistant plastics and containing terminals, connection terminals and protection diodes (by-pass). These tiles are supplied with symmetric lengths of cable, with a diameter of copper section of 4 mm and an extremely low contact resistance, all designed to achieve the minimum voltage drop losses.
Our tiles comply with all safety requirements not only flexibility but also double insulation and high resistance to UV rays, all are suitable for use in outdoor applications. The design of these modules makes their integration in both industrial and residential buildings (one of the most emerging sectors in the photovoltaic market), and other infrastructure, simple and aesthetic.
{tab=
Data|grey}
Silicon Cell Photovoltaic Module monocrystalline (sc-Si), BIPV-Tiles series, for architectural integration, from the manufacturer SOLAR INNOVA, maximum power (Wp) 132 W, voltage at maximum power (Vmp) 13.92 V, current at maximum power (Imp) 9.48 A, open circuit voltage (Voc) 16.40 V, short circuit current (Isc) 10.04 A, efficiency 18.38%, composed of 24 cells, front layer tempered glass thick 4 mm, encapsulating layers of cells of PVB, back layer of tempered glass thick 4 mm, anodized aluminum frame AL-6063-T5, junction box (diodes, cables 4 mm2, 450 mm and connectors MC-T4), working temperature -40/+85 ºC, dimensions 1056x760 mm, maximum wind load 2400 Pa, maximum snow load 5400 Pa, weight 16.55 kg.
Electrical Characteristics STC
|
Maximum power (Pmpp) |
Wp |
132 |
|||
|
Power selection |
% |
± 3 |
|||
|
Voltage at maximum power (Vmpp) |
Volts |
13.92 |
|||
|
Current at maximum power (Impp) |
Amperes |
9.48 |
|||
|
Open circuit voltage (Voc) |
Volts |
16.40 |
|||
|
Short circuit current (Isc) |
Amperes |
10.04 |
|||
|
Maximum system voltage (Vsyst) |
Volts |
1,000 (IEC) |
|||
|
Diodes (By-pass) |
Quantity |
2 |
|||
|
Maximum series fuse |
Amperes |
15 |
|||
|
Efficiency (ηm) |
% |
18.38 |
|||
|
Form Factor |
% |
80.17 |
|||
STC:
Irradiance: 1,000 W/m2 +
Cell Temperature: 25º C +
Air Mass: 1,5
Electrical Characteristics NMOT
|
Maximum power (Pmpp) |
Wp |
97 |
|
Voltage at maximum power (Vmpp) |
Volts |
12.68 |
|
Current at maximum power (Impp) |
Amperes |
7.70 |
|
Open circuit voltage (Voc) |
Volts |
14.99 |
|
Short circuit current (Isc) |
Amperes |
8.14 |
NMOT:
Irradiance: 800 W/m2 + Ambient Temperature: 20º C + Air Mass: 1,5 +
Wind Speed: 1 m/s

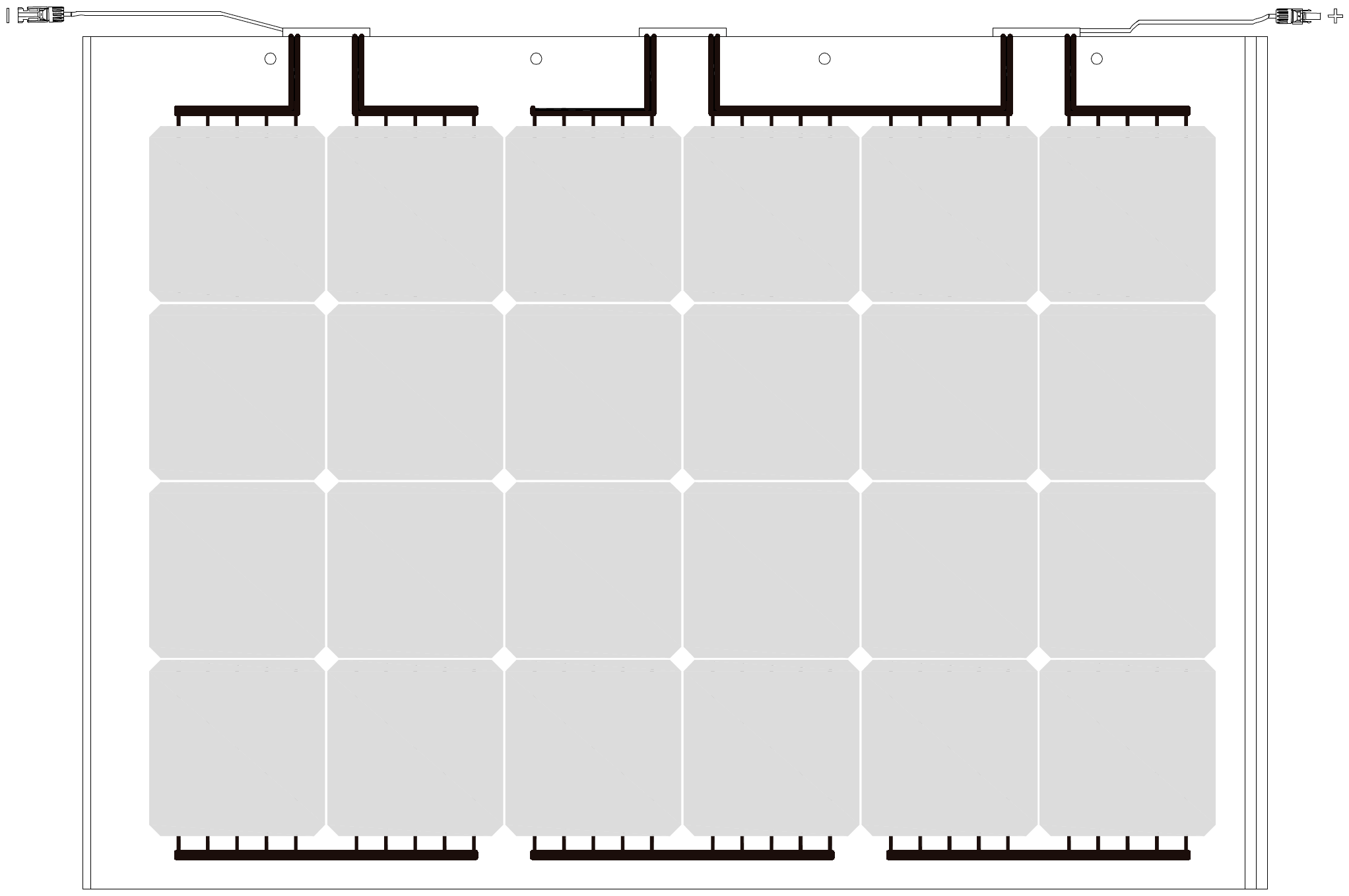

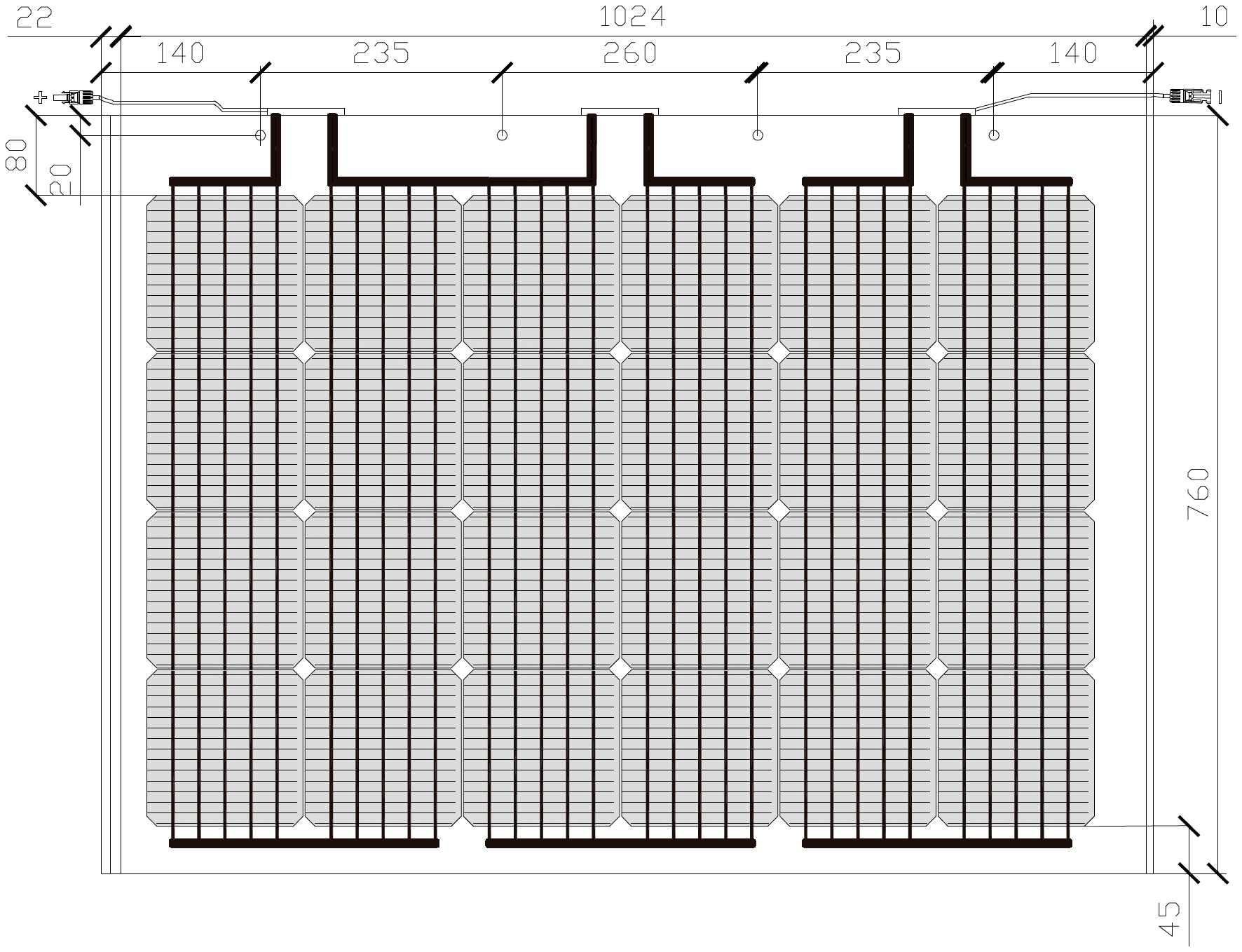

Drawings|grey}
Pictures|grey}
{tab=
Videos|grey}
{tab=
Certificates|grey}
Our manufacturing plants have been prepared in accordance with:
ISO 9001, in terms of Quality Management Systems.
ISO 14001, in terms of Environmental Management System.
ISO 45001, in terms of Occupational Health and Safety Management Systems.
We have a quality control divided into three elements:
Regular inspections allow us to guarantee the quality of the raw material.
Quality control in the process of our manufacturing procedures.
Quality control of finished products, we conduct through inspections and tests of reliability and performance.
The photovoltaic modules Solar Innova have passed several international certification requirements and continue to improve the quality and performance of our products of proven technologies. Quality is one of our core principles and the pursuit of quality is the engine of the company's future, in their desire to continually offer better products.
Our PV modules are certified by internationally recognized laboratories and are proof of our strict adherence to international safety standards, long term performance and overall quality of products.
{tab=
Guarantee|grey}
All solar panels manufactured by Solar Innova have the following minimum guarantees:
Linear Performance Guarantee
The linear power guarantee Solar Innova modules ensures a higher power than that of the other photovoltaic module during the lifetime of the plant. The combination of our high quality modules with an optimal plant design results in maximum performance for end users and allows you the maximum performance guarantees to their customers without having to worry.
Linear performance warranty Solar Innova
Importance of Ensuring Adequate Power
Solar Innova offers great advantages with its linear power warranty. Other power guarantees are reduced in stages over the time periods established. These guarantees remain staggered continuous from beginning to end in the same period. Considering the drastic reduction in the coverage of the guarantee to pass a temporary step to another, there is the possibility that the module power drops sharply at the beginning of the period, without being able to claim the manufacturer. To prevent unexpected power loss out of warranty, it is best to have a potency guarantee is reduced linearly over the lifetime of the module.
